Technical Specifications
Comprehensive technical details for both products with downloadable spec sheets.
Specifications Overview
Overall Length215 mm (8.5 in)
Max Outer Diameter82 mm (3.2 in)
Insertable Depth140 mm (5.5 in)
Weight420 g
TypeBrushless DC (ERM)
Speed Range1,500 – 7,500 RPM
Vibration Patterns9 presets
Max Power Draw5.5 W
Operating Noise<50 dB(A) at 1 m
WaveformBiphasic symmetric (charge-balanced)
Output Current0.5 – 15 mA (hardware-limited)
Output Voltage3 – 24 V peak open-circuit
Frequency Range2 – 150 Hz
Pulse Width50 – 300 µs
Intensity Levels5 steps
Electrode MaterialAu-plated Cu (0.5 µm Au)
Electrode Zones3 contact areas
Impedance MonitorAuto-shutoff on contact loss
Thermal Cutoff45 °C (auto-shutoff)
Travel15 mm
MechanismCompression spring + silicone damper
Contact Pressure0.5 – 1.5 N/cm²
Cell TypeLi-Po 3.7 V
Capacity2,500 mAh (9.25 Wh)
Runtime – Vibration Only~120 min (mid-speed)
Runtime – E-Stim Only~180 min (low draw)
Runtime – Combined~90 min
ChargingUSB-C 5 V/2 A ~75 min to full
BMS ProtectionOVP, UVP, OCP, OTP
SleeveMedical-grade TPE (Shore A 10)
HousingABS plastic (UL 94 V-0)
Electrode CoatingAu 0.5 µm over Cu 99.9%
SealingSilicone O-rings + ultrasonic weld
WirelessBluetooth 5.0 LE
EncryptionAES-128
App SupportiOS 14+ / Android 10+
Range~10 m (line-of-sight)
WaterproofIPX7 (1 m / 30 min)
E-Stim SafetyIEC 60601-2-10 Class II
MaterialsRoHS, Phthalate-free, BPA-free
EMCFCC Part 15B, CE
Warranty2-year limited

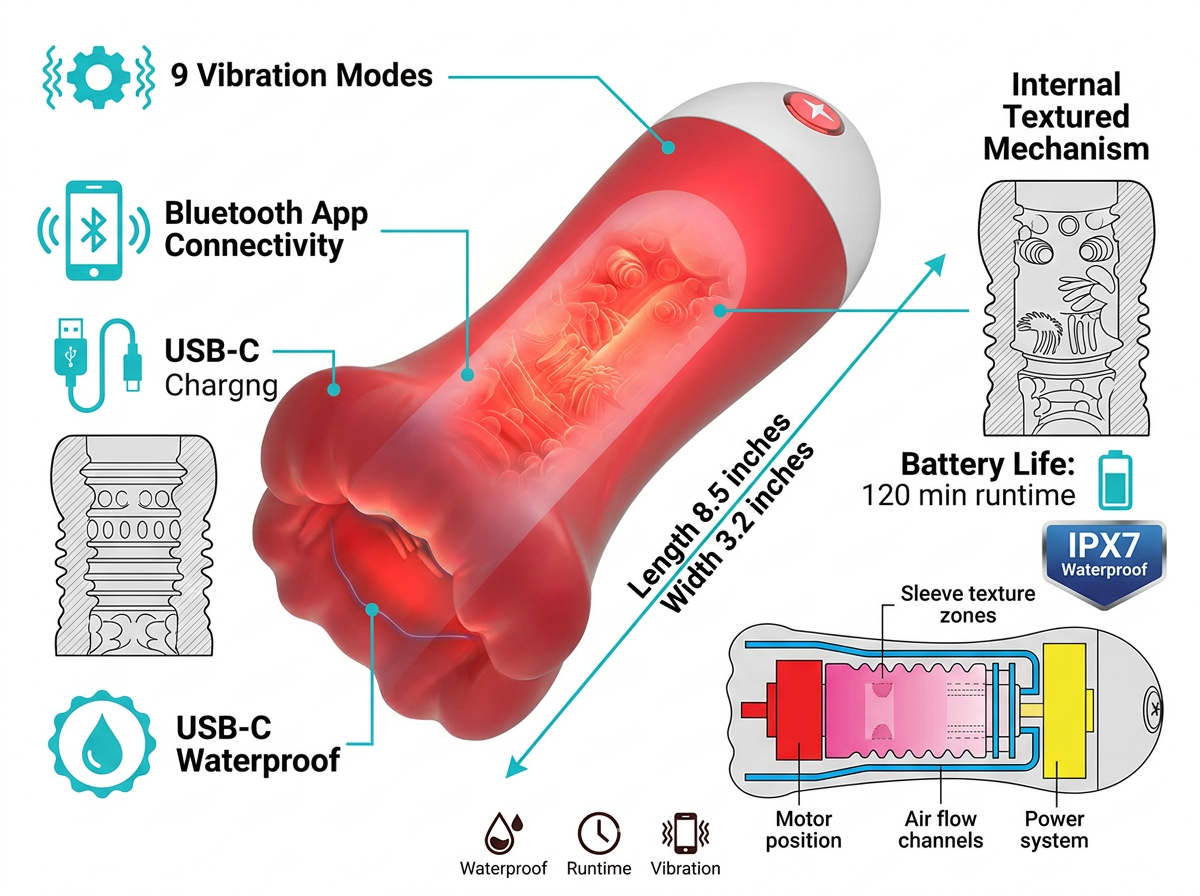

Internal Mechanism Diagram
